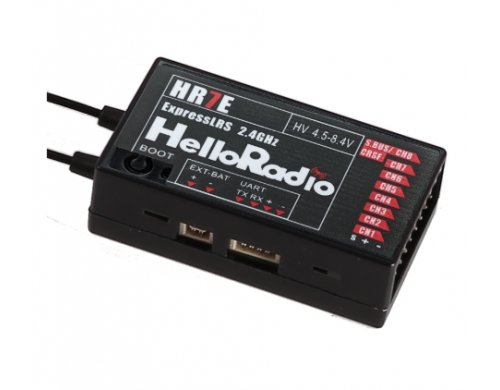

HelloRadio HR7E 2.4GHz ELRS 8 Ch Receiver

The HelloRadio E-series receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response times, and ultra-long range, allowing you to experience your hobby in a whole new way.

The HelloRadio HR7E receiver is specifically designed for model aircraft. It can control up to 8 servos and features built-in receiver voltage telemetry and flight battery telemetry, with the ability to automatically detect which voltage input to use. A CRSF interface facilitates future expansion of telemetry sensors. The HR8E features a dual antenna with a telemetry output of up to 100mW.

- Power supply: DC 4.5-8.4V

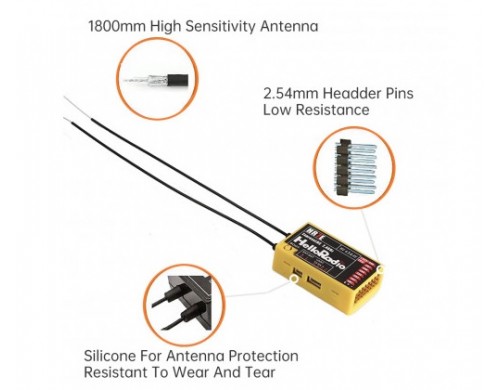

- Antenna type: 18cm high sensitivity dual antenna

- Wireless Protocol: Pre installed ExpressLRS 3.3.0

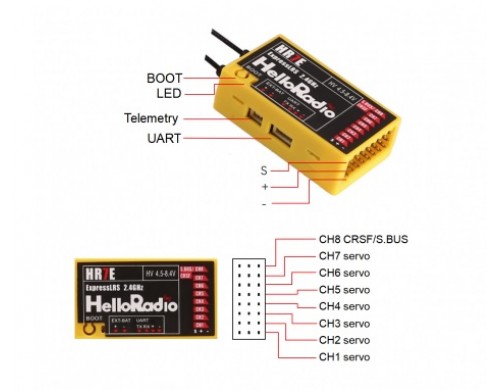

- Output channel: 8CH PWM

- Return power: up to 100mw (adjustable in LUA)

- Return battery voltage detection range: DC 4.0-35V

- Bus interface: CRSF

- Size: 48mm x 25mm x 15mm

- Weight: 10 grams

Binding Method

1, Power on the receiver; the LED will turn on.

2, Power off the receiver.

3, Repeat Step 1 twice.

4, Power on the receiver for the third time; the LED will double blink, indicating bind mode.

5, Select [BIND] on the radio and confirm.
